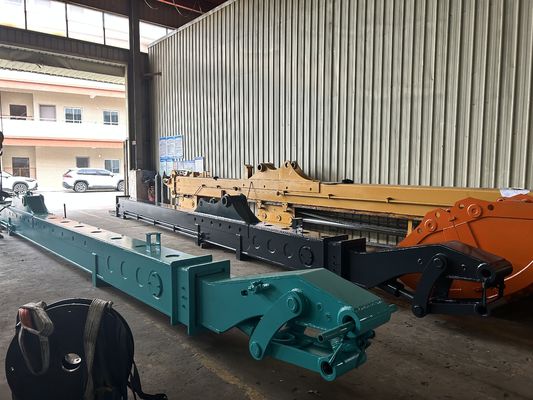

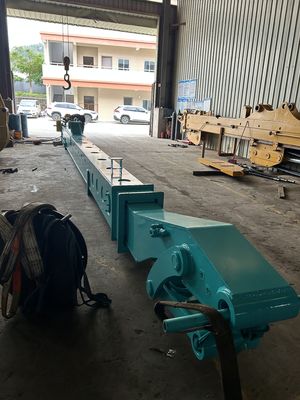

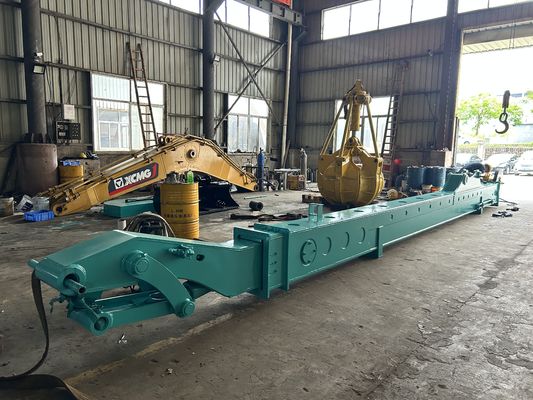

A telescopic arm for excavators consists of a stationary frame, a sliding mechanism, a wire rope, and a telescopic hydraulic cylinder. The excavation depth and operational radius can be adjusted by modifying the number of sliding sections. It is often equipped with a bucket for digging deep pits and handling materials like soil, sand, and coal.
The two-stage telescopic boom utilizes LG700 steel, while Q355B is used for other structural components to ensure durability and reduced weight. Features include:
-
22-ton heavy-duty bucket cylinder
-
Enlarged reel with reinforced spring plates
-
Multi-layered reinforcement at the bearing points
-
LG700 high-strength steel box structure
-
A strengthened pivot end for improved resistance to excavation forces
High precision machine of Zhonghe Machinery Manufacturers
Large, floor-mounted double-sided boring and milling lathe:
- Increased Precision and Consistency: The double-sided boring and milling lathe enhances operational accuracy and consistency.
- Post-Welding Process: After welding, the machine bores through the hole, ensuring the parallelism and verticality of the shaft.
- Main Responsibility: This machine is primarily used for post-welding boring of large and small arms and buckets to ensure accuracy.
- Simultaneous Boring: The double-sided boring lathe performs boring on both sides at the same time, guaranteeing even accuracy.
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Co., Ltd., established in 2018, is an innovative manufacturer and trading enterprise specializing in custom excavator boom arms and attachments. Located in Cuishanhu New District, Kaiping City, Jiangmen, Guangdong, we operate a 21,000m³ steel-structured workshop equipped with high-precision machinery. Our team consists of 100+ skilled technicians, including 50 expert welders with over seven years of experience, 30 senior designers, and a dedicated R&D team with 10+ years of expertise and 100+ technical patents. With a strict quality and cost control system, we produce up to 800 excavator boom arms annually, delivering reliable products and excellent service.
CE certification & Utility model patent certificates
Our products have been sold to more than 60 countries, and our transportation methods include sea transportation, land transportation, and air transportation. Our packaging is wooden box packaging or stretch film packaging. The goods will be packed before shipment and then loaded into the container to ensure the safety of the goods.
Packaging & Shipping
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to the success.
Q: Is the length of the telescopic arm the total length or the digging depth?
A: The length of a two-stage telescopic arm refers to the digging depth. For example, a 14-meter telescopic arm means that the maximum digging depth is 14 meters, so it is called a 14-meter telescopic arm. The actual arm length is not only 14 meters.
Q: What material is the telescopic arm made of?
A: The arm tube of the telescopic arm is made of a690 or HG785 material, and the material of other parts is a355B material.
Q: What are your terms of payment?
A: We prefer T/T (50/50) through Ali Credit Insurance as a trial order.
Q: Are you always delivered on time?
A: We can't promise about the sea freight but what we can do is shorten our lead time while keeping the same quality level. So there will not be any problem even if the sea freight is delayed for a couple of days.
